Corner Tattoo: brand identity and an illuminated LED sign

Visual identity for a Gdynia tattoo studio plus a custom illuminated LED sign built around the graffiti CORNER mark. The channel body was printed in 12 segments on the Bambu farm, joints designed to a 0.03 mm tolerance, a laser-cut acrylic face, and LED neon fill.

Close-up of the layered mark: lime lettering on a magenta backplateIE-010 · FIG.01 · Close-up of the layered mark: lime lettering on a magenta backplate

Problem

Corner, a tattoo studio in Gdynia, needed a coherent brand and a physical, glowing sign that matched the raw graffiti character of the interior. An off-the-shelf neon sign could not carry the custom artwork, and the lettering was too large and too intricate to print in one piece on a single machine.

Outcome

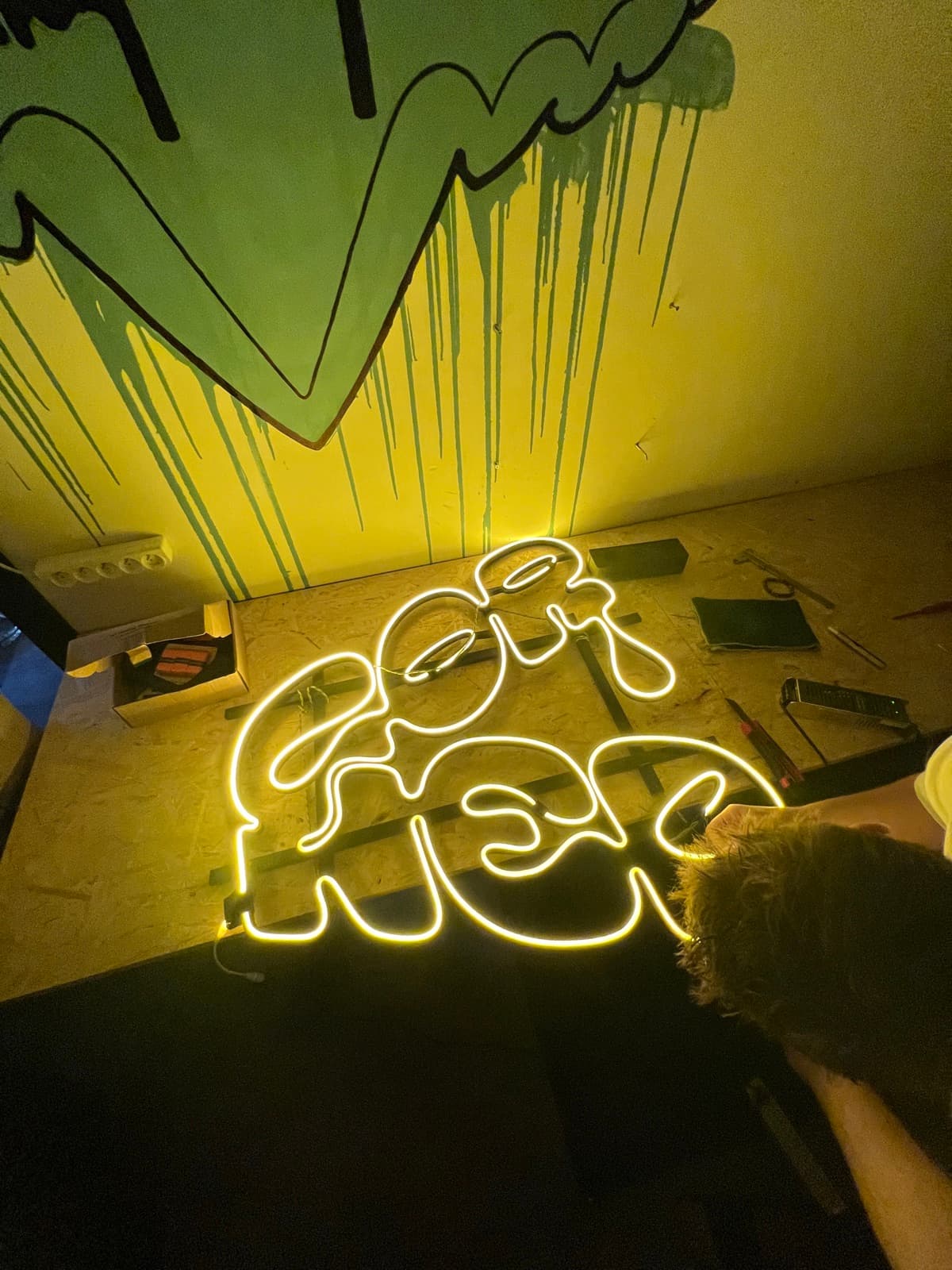

An illuminated LED sign assembled from 12 segments and delivered to the Corner Tattoo studio in Gdynia, together with a full logo pack. The segmented build made it possible to produce a sign larger than a single printer's build volume, and the 0.03 mm joints kept the segment lines tight.

  1. 01Brand design: vectorising the custom graffiti CORNER artwork in Illustrator, with a logo pack in mono and colour versions.
  2. 02Modelling the sign's channel body in Shapr3D from the artwork, with channels for the LED neon and a face for the laser-cut acrylic.
  3. 03Splitting the body into 12 printable segments sized to the print bed, with joints designed to a 0.03 mm tolerance.

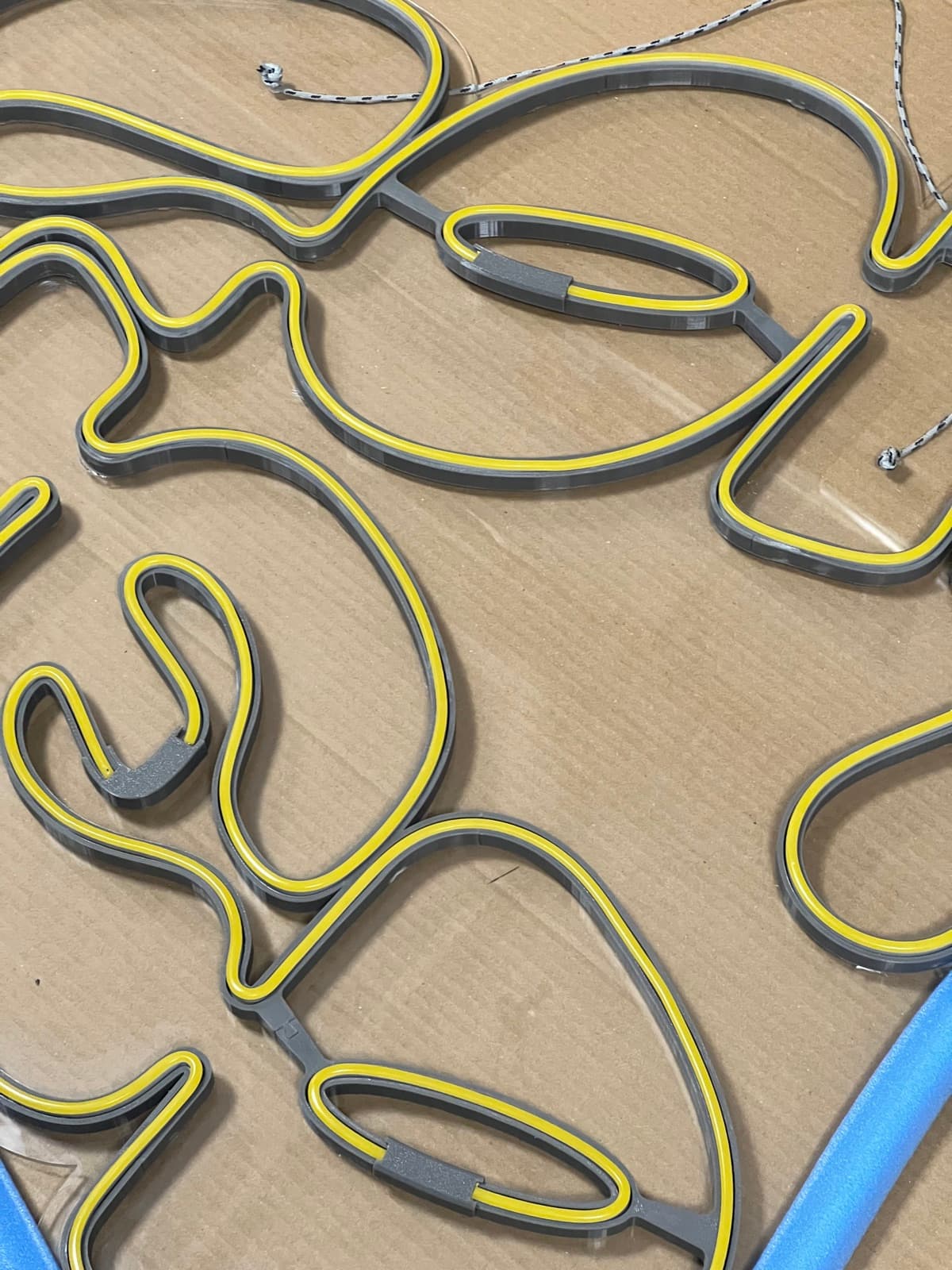

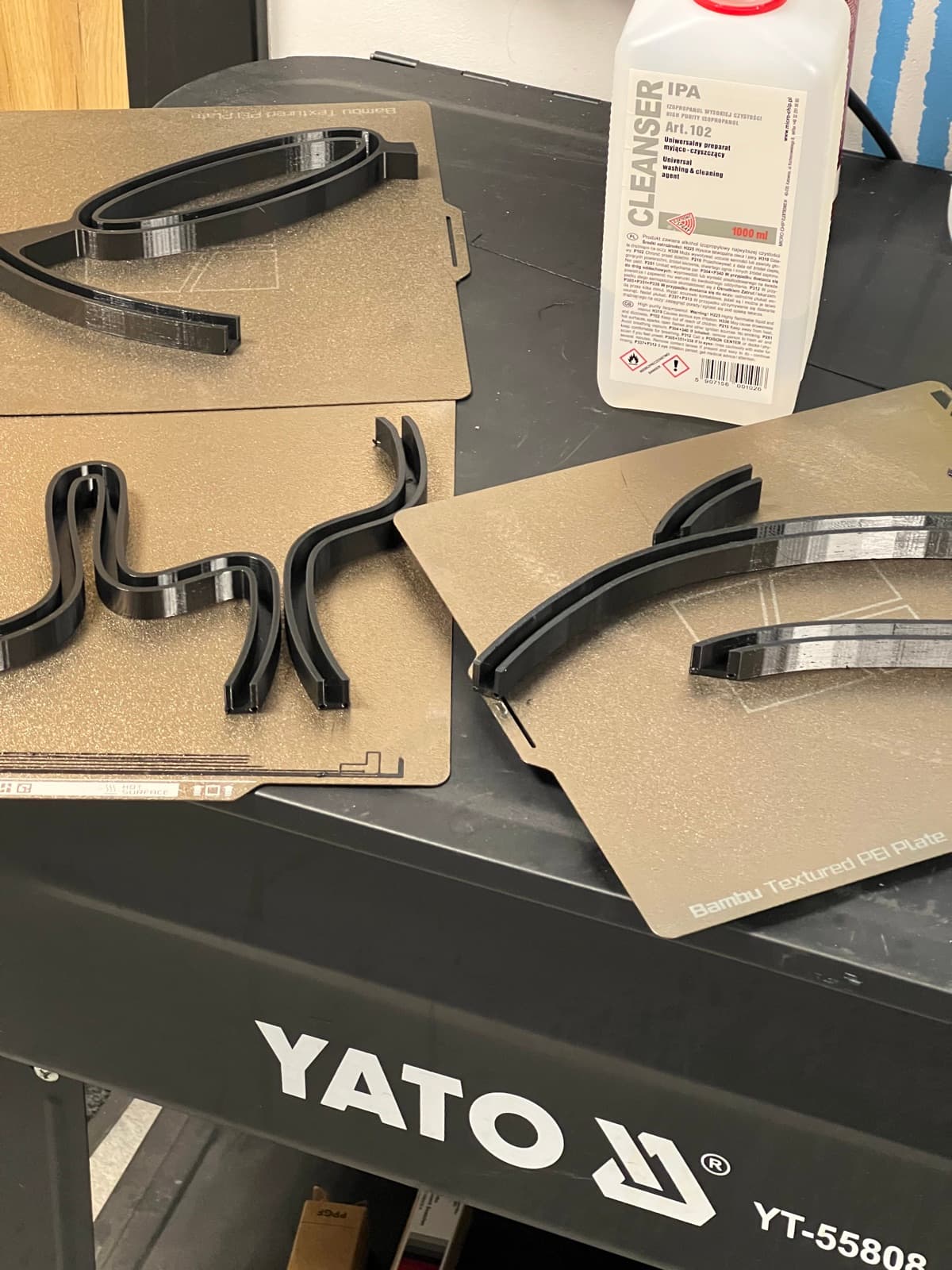

  4. 04Batch-printing the 12 segments in parallel across the 6-printer Bambu farm, assembling the body, routing the LED neon and bonding the acrylic face.

Specifications

IE-010
Body
12 printed segments
Join tolerance
0.03 mm
Lighting
LED neon
Face
laser-cut acrylic
Production
6x Bambu farm, parallel
Identity
graffiti mark + logo pack
The graffiti CORNER mark shown on a concrete wall
FIG.02The graffiti CORNER mark shown on a concrete wall
Colour graffiti brand mark, yellow to magenta gradient
FIG.03Colour graffiti brand mark, yellow to magenta gradient
Sign body split into 12 segments in the Bambu slicer
FIG.04Sign body split into 12 segments in the Bambu slicer
CAD of the LED channel routing with 0.03 mm join tolerances
FIG.05CAD of the LED channel routing with 0.03 mm join tolerances
