// 02
RefIE-002
ClientDeweloper mieszkaniowy
Year2025
Scale1:1
[3D Print][Batch][Systems]

Apartment numbering and floor signage for a residential building, delivered in stages

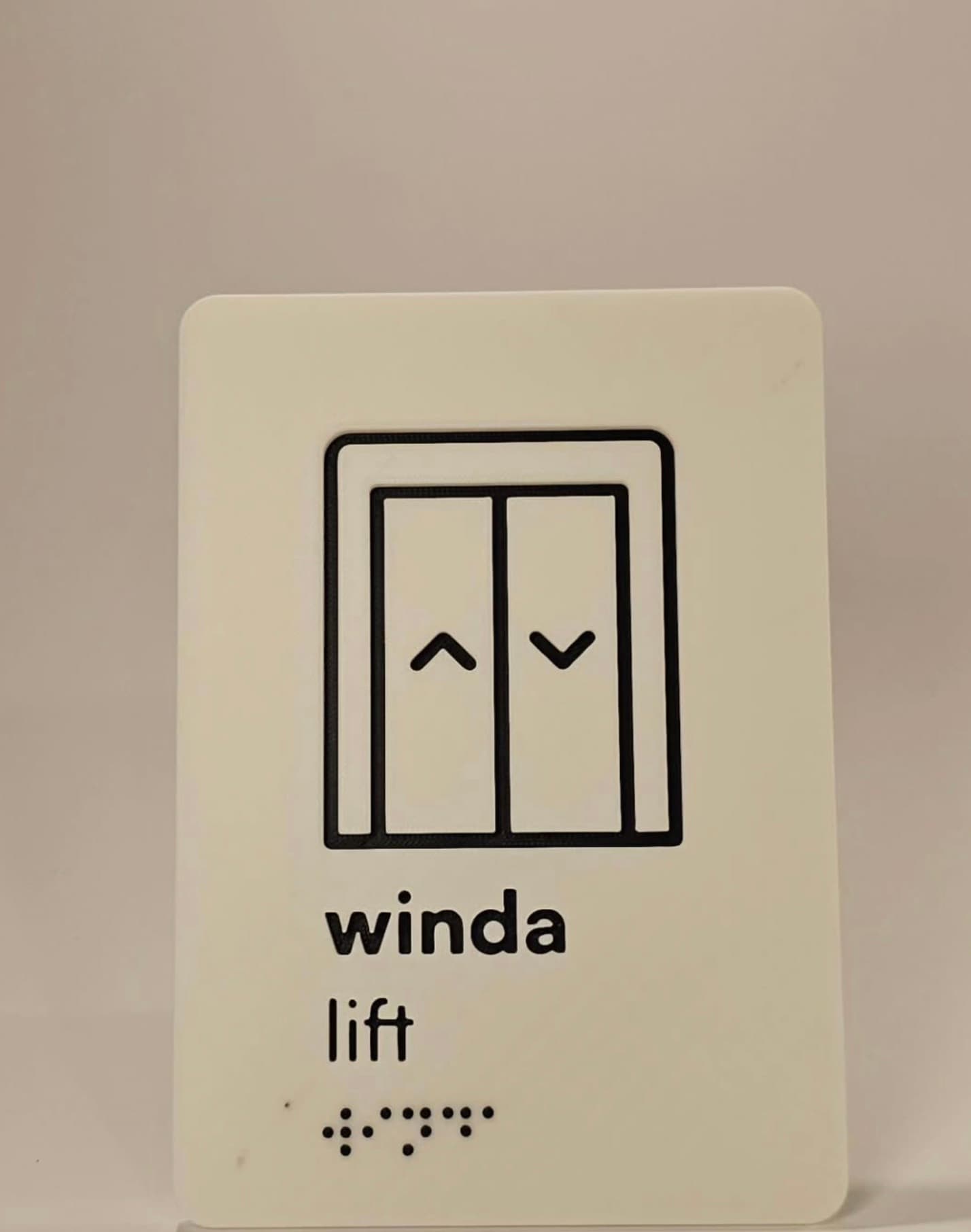

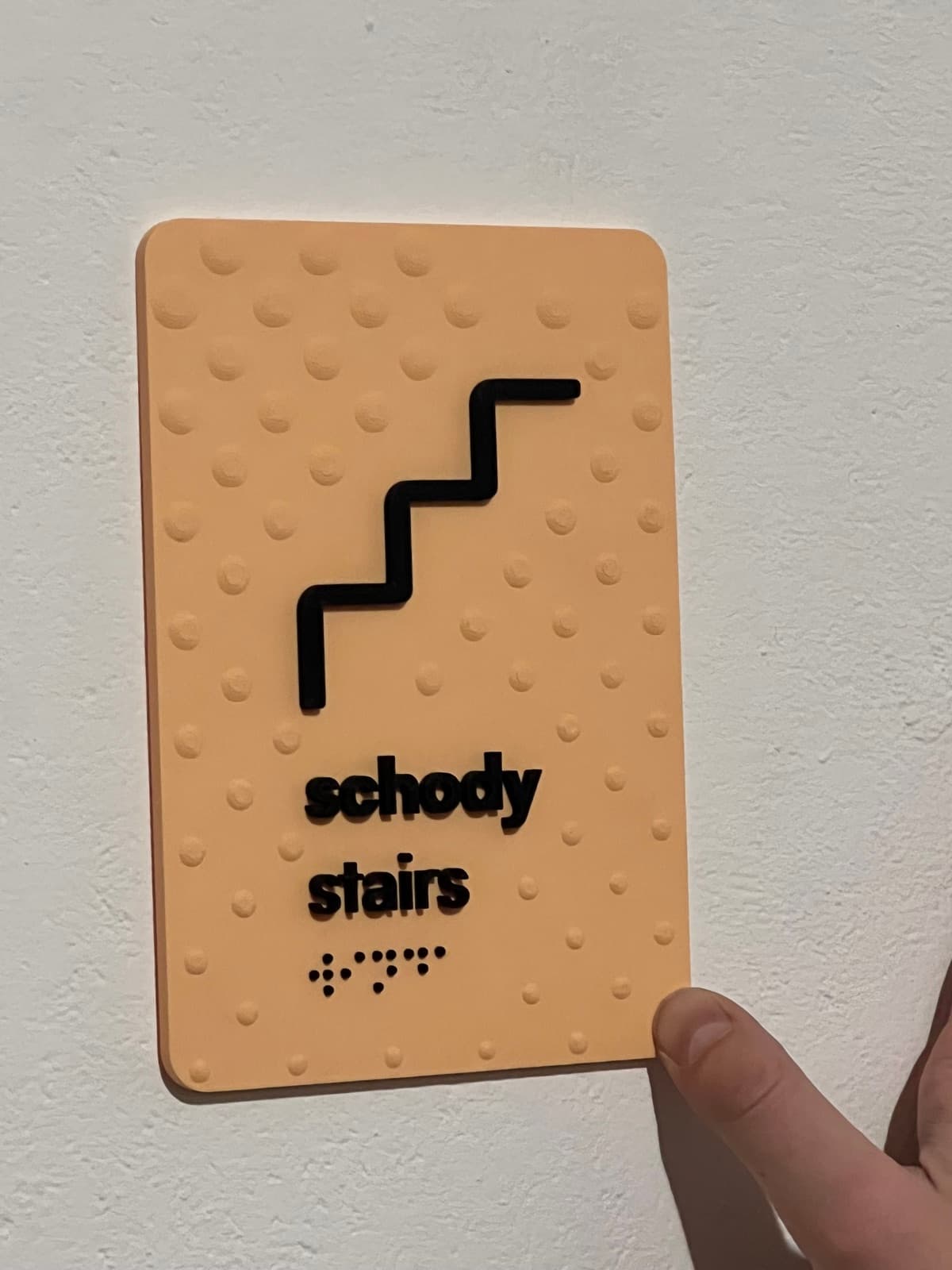

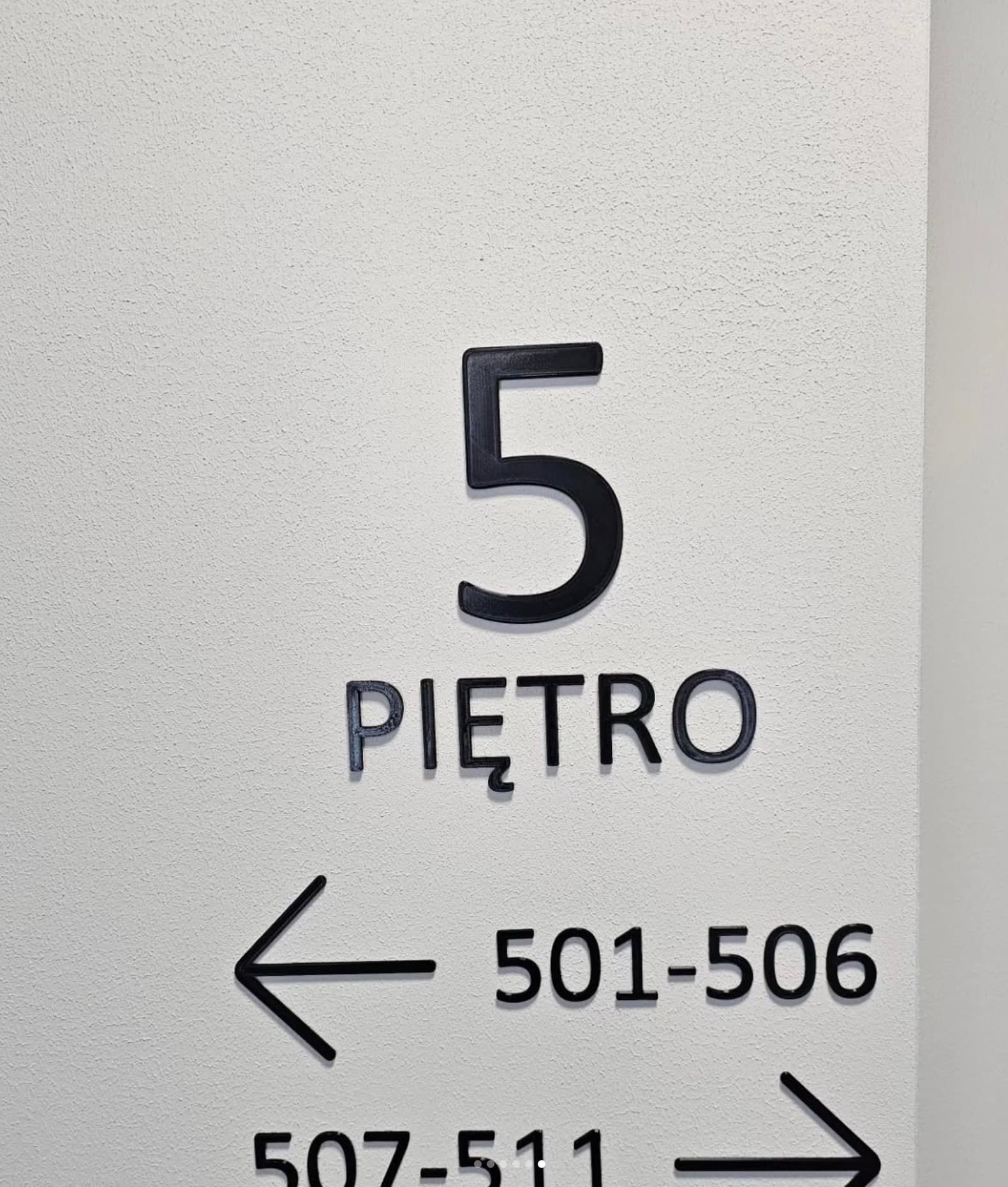

Apartment numbers and floor signs for a developer, delivered in stages as parts of the building were handed over: more than 300 number plates (162 per stage), floor signs, mounting templates and tactile braille signs, and in a later stage a moss version too. Full freedom of typeface, size and shape; with a finishing partner also texture and gloss. At this volume 3D printing competes with traditional signage manufacturing.

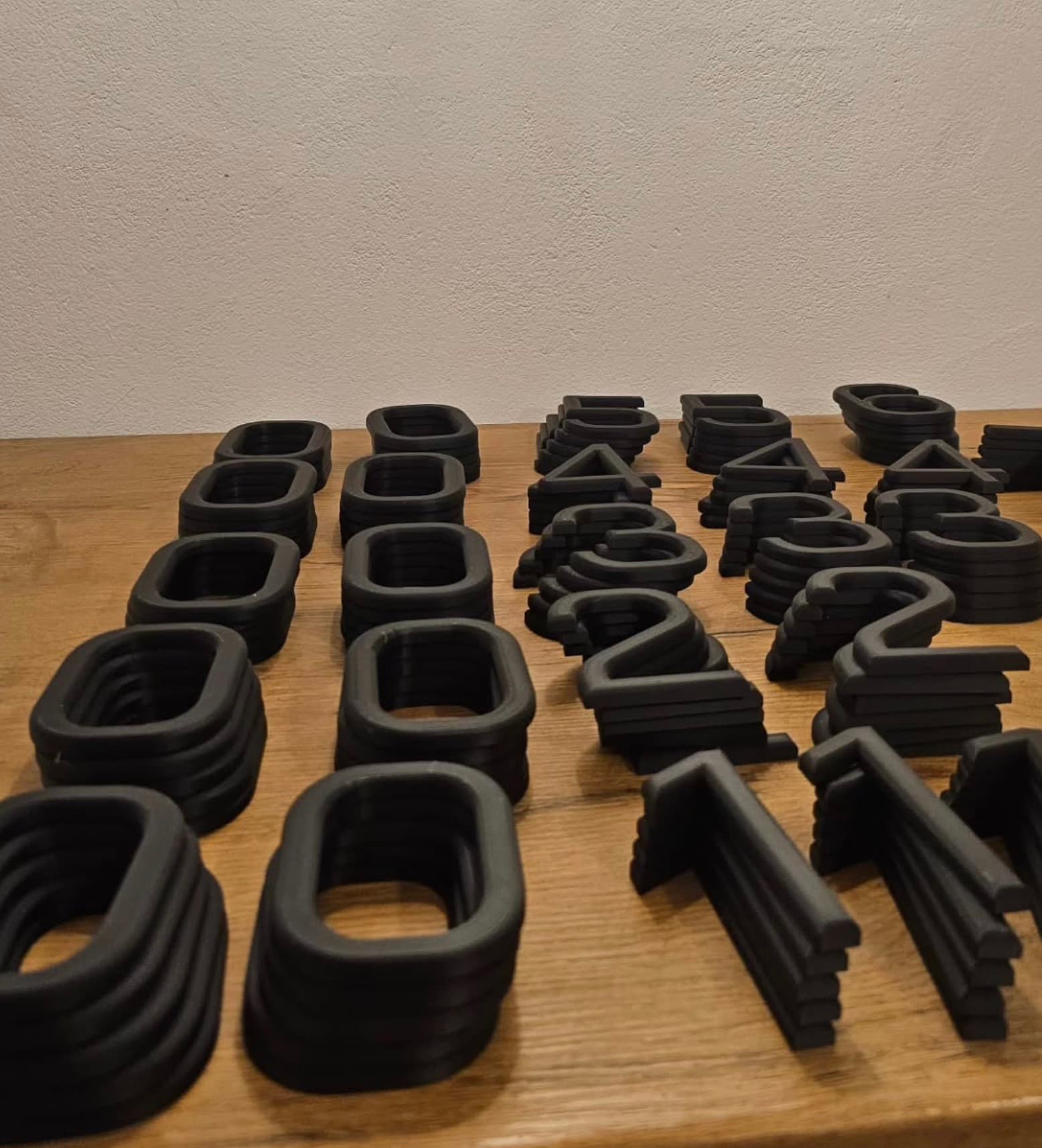

Full batch of printed digits sorted on the workbench before mounting
Full batch of printed digits sorted on the workbench before mounting

Problem

The developer hands the building over in parts, and every floor handover needs a full set of signage: apartment numbers, floor signs and tactile signs, all in one style and without waiting weeks for a supplier. Each new stage has to match the previous one exactly.

Outcome

A signage system that grows with the building: every stage repeatable, on time and in one style. The files stay with us, so the next block is a matter of days, not a new design. With finishing partners we add different textures and gloss, and at this volume 3D printing competes with traditional engraving and milling.

  1. 01Numbers, signs and templates designed in CAD. Typeface, size, shape and corner radii agreed with the developer: 3D printing is not limited by stock designs or dies.
  2. 02Prototypes on the wall before the run, to check legibility, colour and fixing in the real location.
  3. 03Serial production in stages: 162 plates per stage, several prints running in parallel, delivered for each floor handover date.
  4. 04Mounting templates and instructions for the site crew: every plate goes on straight and in the same place on every floor.
  5. 05Later stages from the same files, at the same quality; a moss variant was added in a later stage.

Specifications

IE-002
Number plates
300+
Per stage
162 pcs
Floor signs
yes
Also
templates, braille, moss version
Delivery
in stages, per handover

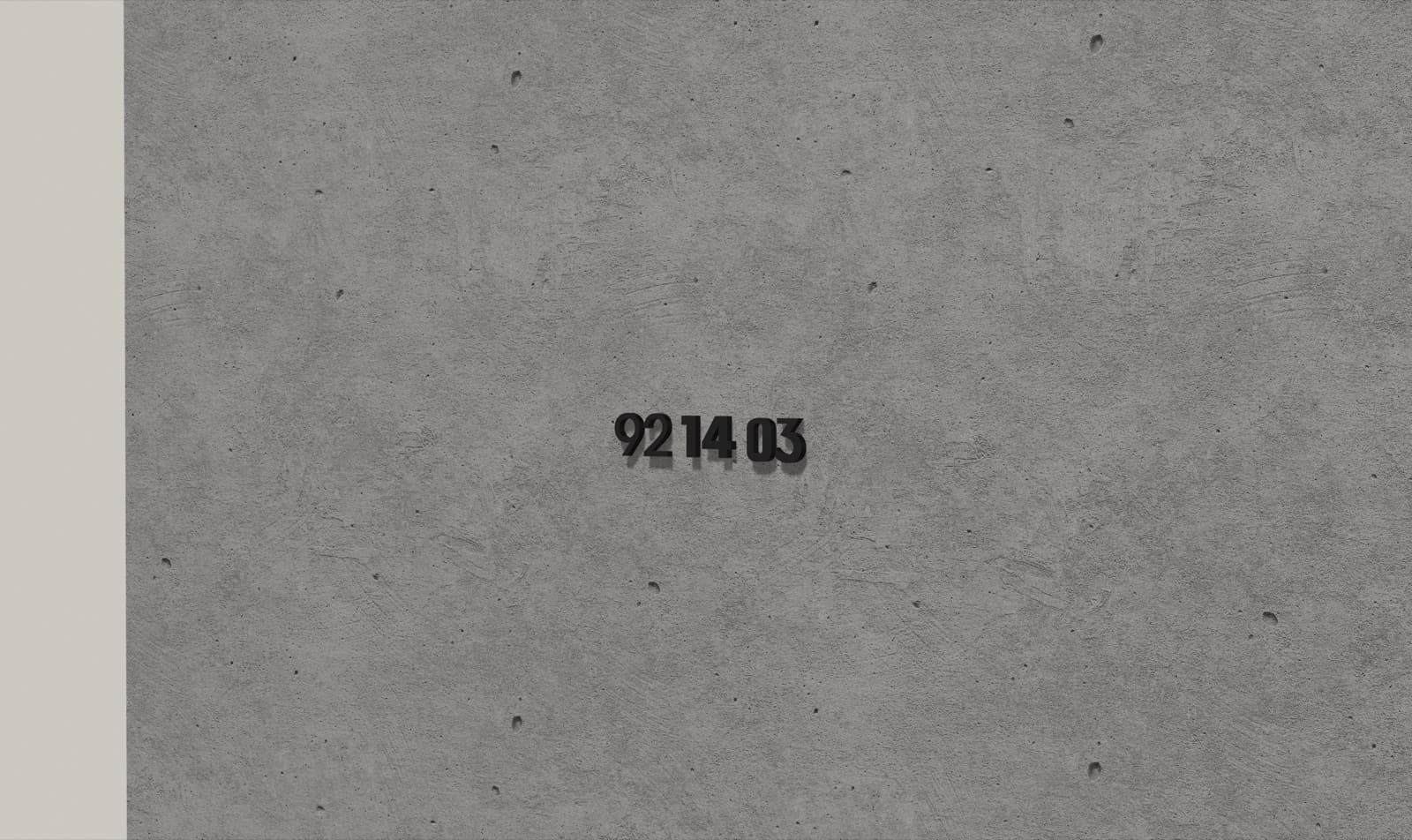

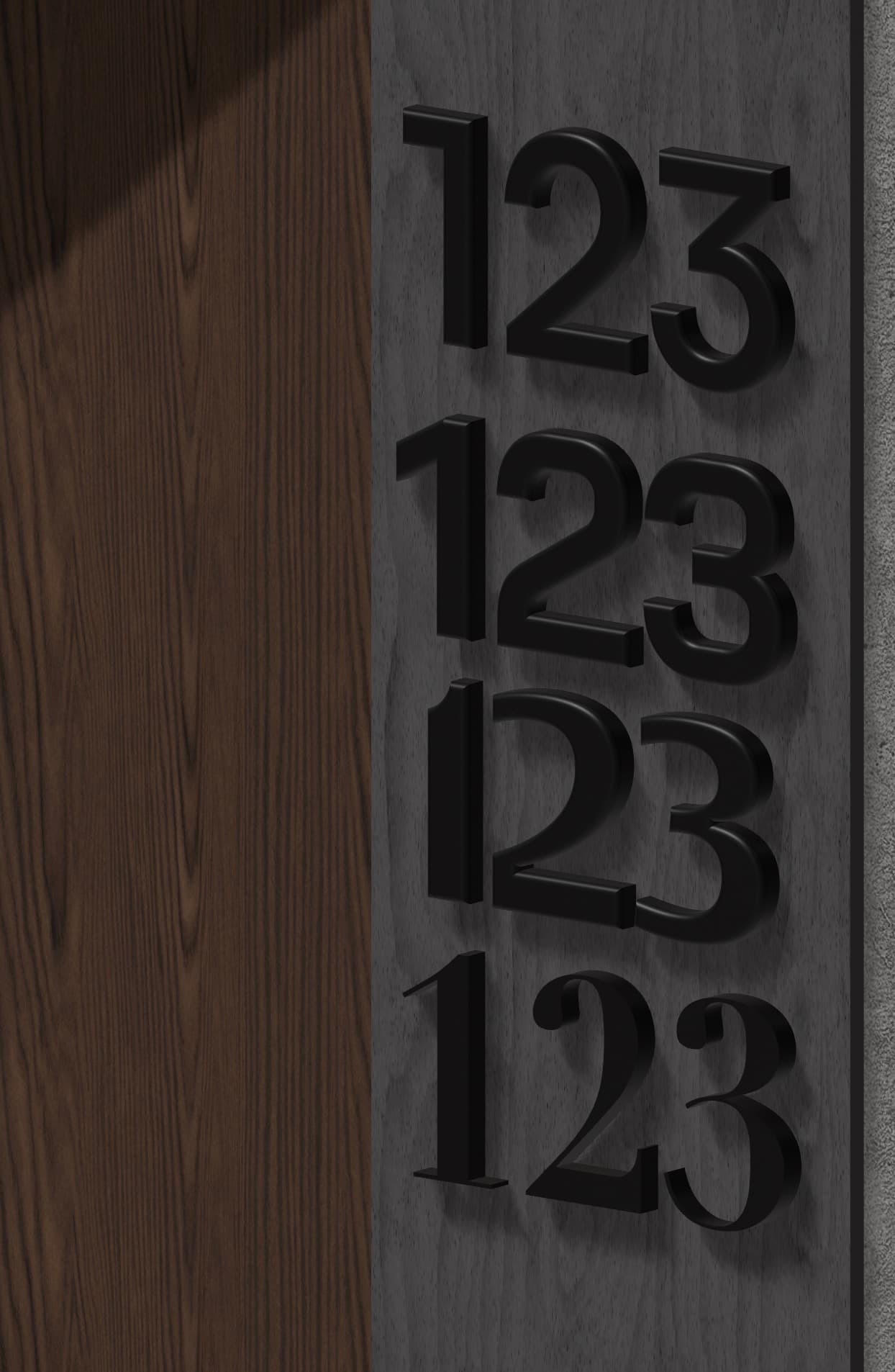

Renders and 3D model

03

Finished product

03
